Undercounter dishwasher

Undercounter front loading commercial dishwasher

Washing efficiency, reliability, hygiene, ergonomics, optimized consumption, ... these are the technical attributes that every professional needs.

Sani-Control guarantee

  • GUARANTEED DISINFECTION: rated to NSF/ANSI Standard 3 by ETL Sanitation.
  • THERMAL LOCK function: ensures that rinsing is carried out at the ideal temperature to disinfect the dishes.
  • "THERMAL LOCK" function: ensures that rinsing will be carried out at the ideal temperature to disinfect the dishes.
  • CONSTANT HIGH TEMPERATURE RINSE system for optimal disinfection.
  • The PRESSURE PUMP guarantees effective high-pressure rinsing.
  • Pot and pan dedicated cycle rated to NSF/ANSI Standard 3.

Deep drawn tanks

  • Ergonomic design with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
  • Compact tank volume (50% water saving compared to the previous range).
  • Embedded basket guides.

Hydroblade™ washing arms

  • Redesigned nozzles for greater washing performance.
  • The "monoblock" design delivers durability and resistance to impacts.
  • 30% savings in water consumption during rinsing compared to the previous range.

3-stage filter system: surface, tank and extraction

  • Keeps the washing water in optimal conditions to maintain constant washing performance.
  • The surface filters feature an "easy-on" design and can be quickly removed without having to disconnect the washing arms.

Soft start

  • Progressive start-up of the washing pump to protect fragile items.

Color LCD display

  • Intuitive communication of the machine status by means of messages, colour codes and icons.
  • Control panel with IP65 humidity protection.

Dedicated cycles

  • Selection of the ideal washing programme using icons.

Maximum efficiency

  • Energy-saving function: temperature-reduction and electricity consumption saving during periods of temporary inactivity of the machine (25').
  • Machine shutdown due to total inactivity (2 h).

Adaptability and control

  • Adaptable: allows the main parameters of the machine to be adjusted to the needs of each user.
  • Dosage control from control board by authorised personnel.
  • Temperature display.
  • "Wash plus+" function: increases the intensity of the wash cycle for greater cleaning performance
  • Your machine, tailor-made for you: list of options.

"Easy-grip" door: new design with integrated door handle

  • Designed to have no corners or areas that are difficult to access: prevents deposits of dirt and facilitates cleaning.
  • Its ergonomic handle provides a perfect grip, even with wet hands.
  • Double-walled door with safety microswitch and high quality seal.
  • 15" loading capacity: high versatility for washing a wide range of items: dishes, Euronorm trays, GN 1/1 tubs and 15.4" pizza plates.

Proactive washing water renewal

  • Proactive washing water renewal: 15% of the washing water is renewed after each washing cycle, keeping the washing capacity constant throughout the day.
  • Self-cleaning cycle: the machine performs a self-cleaning cycle at the end of the shift, facilitating maintenance tasks and ensuring the cleaning of the tank.

You will never WASH ALONE

  • Tech Services: our team of technicians will help you so that your machine is always ready for use.
  • Design Services: tell us what your needs are and we will advise you.
  • Over 60 years of experience and know-how at your disposal.

Compact tank volume

Maximum efficiency.

Hydroblade™ washing arms

Water savings, washing efficiency, strength and durability.

"Easy-on" surface filters

Extremely easy assembly and disassembly.

"Easy-grip" door

Design with integrated door handle.

Large capacity

380 mm door clearance.

Double rack option

Add the double rack accessory and double your dishwasher's output.

Maximum protection for your glassware

Soft start: progressive start-up of the washing pump to protect fragile or delicate items.

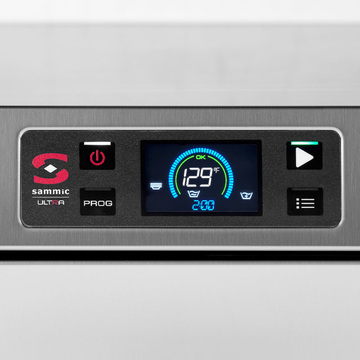

Colour LCD display

Automatic cycle start included.

Comparison

UX-50SBC
UX-50SBC
Features
Rack dimensions20 x 20"
Useful height15"
Electronic control panel✓
Wash temperature display✓
Rinse temperature display✓
Wash tank capacity4 gal
Cycles
Cycles6
Cycle duration100 / 110 / 120 / 180 / 300"
Loading
Pump power1 hp
Tank2.1 kW
Boiler6 kW
External dimensions (W x D x H)
External dimensions (W x D x H)23.6 x 25 x 32.9"
Net weight126 lb

Brochures

Brochure

UX dishwashers (pdf)

download
