Food processor / Veg prep combi machines
The perfect cut, with many possibilities
It consists of a variable speed motor block with a regular or large capacity hopper and a cutter-mixer bowl complete with a hub with serrated blades.
COMPACT line: compact design and commercial performance
- Available in 1-speed ACTIVE range and variable-speed ULTRA range. ULTRA range equipped with high-efficiency "brushless" technology and advanced features.
- 2 discs included: FCS-4 (4 mm slicing disc) and SHS-2 (2 mm shredding disc).
- Big capacity: 4.4 l bowl and big production capacity.
- Sturdy fiberglass-reinforced polymer construction.
- Designed to make the most of your workspace.
- Highly resistant, dishwasher-safe Tritan™ (BPA-free and any bisphenol-free recyclabe copolyester) bowl.
- "Invert-blade" technology and lateral stirrers designed to obtain a homogeneous grinding results without traces.
HEAVY-DUTY line (all ULTRA range): adjustable speed models equipped with "brushless" technology: powerful and efficient motors
- Maximum efficiency: maintain the torque throughout the speed range.
- Exclusive "Force control system": guarantee of a uniform and high quality result.
- Lightweight and compact design: they weigh less, they occupy less space.
- Improved air / water-tightness since no ventilation is required.
- They generate less noise: improved workplace environment.
Vegetable slicer function: a perfect cut.
- High precision settings and comprehensive cutter and disc design aimed at obtaining a perfect cut.
- COMPACT line: exclusive "Gravity slide system" - gravity product expulsion ramp allows to reconstruct the sliced product for storing or presentation purpose.
- Ejection disc included on all models for the products that require its use.
- It can be fitted with a wide range of discs and grids of the highest cutting quality. Combining these accessories together to obtain more than 35 (Compact line) / 70 (Heavy Duty line) different types of cuts and grating grades.

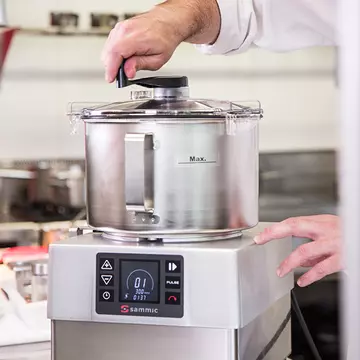

Cutter function: efficiency and performance.
- ULTRA line: built-in programs and option to customize programs for recipe standardization.
- Big capacity: 4.4 / 5.5 / 8 l bowl.
- Hub with serrated blades included.
- Optional smooth or perforated blades.
Built to last
- Sturdy construction in food-grade best quality materials.
Maximum comfort for the user
- Ergonomic design: product sliced in one single movement.
- Lateral product output: requires less space on the worktop and guides the product, avoiding splashes.
Maintenance, safety, hygiene
- Lever, lid and bowl are easily removable for cleaning purposes.
- Combination of safety systems: head, cover, bowl, power switch.
- Appliances certified by NSF International (regulations on hygiene, cleaning and materials suitable for contact with foods).
- ETL-listed, UL 763 and CSA 22.2 No. 195 compliant.
- 100% tested.

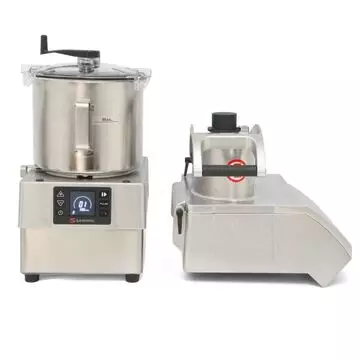

2-in-1
Veg prep machine + cutter
ACTIVE and ULTRA
Available in 1-speed ACTIVE range and variable-speed ULTRA range with high-efficiency "brushless" technology.

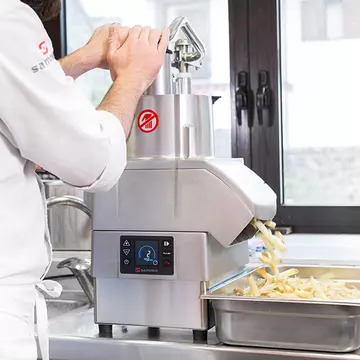

Lateral product ejection
Veg prep machines require less depth on the work table, resulting in an optimal workflow in the preparation area.
Bi-directional design
COMPACT line: it allows the product output to be positioned to the right or to the left.
“Cut&mix” mixer included
Cutter function, HEAVY DUTY line: built-in scraper.
Equipped with lateral stirrers
Cutter function, COMPACT line: bowl equipped with lateral stirrers for an homogeneous result without operator intervention.
Easy cleaning
Head, cover and bowl are easy to detach.

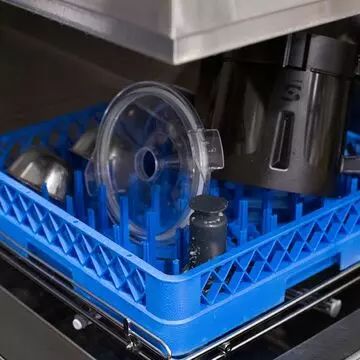

Dishwasher-safe
COMPACT line: the veg prep head, and the food processor rotor and bowl can be washed in the dishwasher.
Comparison
| ACTIVE | ULTRA | |||||
|---|---|---|---|---|---|---|
 |  |  |  |  |  | |
| CK-241 | CK-24V | CK-35V | CK-38V | CK-45V | CK-48V | |
| Selection guide | ||||||
| Covers (from / to) | 10 - 50 | 10 - 50 | 100 - 450 | 100 - 450 | 100 - 600 | 100 - 600 |
| Hourly production | 110 - 770 lb | 110 - 770 lb | 200 - 1000 lb | 200 - 1000 lb | 400 - 1300 lb | 400 - 1300 lb |
| Features | ||||||
| Inlet opening | 13.8 in² | 13.8 in² | 21 in² | 21 in² | 44.4 in² | 44.4 in² |
| Inlet shape | Kidney | Kidney | Kidney | Kidney | Circle | Circle |
| Bowl capacity | 4.4 l | 4.4 l | 5.5 l | 8 l | 5.5 l | 8 l |
| Motor RPM (Cutter) | 1800 rpm | 300 - 3000 rpm | 300 - 3000 rpm | 300 - 3000 rpm | 300 - 3000 rpm | 300 - 3000 rpm |
| Speed as veg. slicer | 1 | 5 | 5 | 5 | 5 | 5 |
| Motor RPM (Veg.Prep.) | 1800 rpm | 300 - 1000 rpm | 300 - 1000 rpm | 300 - 1000 rpm | 300 - 1000 rpm | 300 - 1000 rpm |
| Loading | ||||||
| Single Phase | 1.5 Hp | 2 Hp | 3 Hp | 3 Hp | 3 Hp | 3 Hp |
| External dimensions (W x D x H) | ||||||
| Dimensions (Veg.Prep.) | 14.9 x 12.2 x 21" | 14.9 x 12.2 x 21" | 15.4 x 16.1 x 21.7" | 15.4 x 16.1 x 21.7" | 15.4 x 15.7 x 25.7" | 15.4 x 15.7 x 25.7" |
| Dimensions (Cutter) | 9.9 x 12.2 x 17.1" | 9.9 x 12.2 x 17.1" | 11.3 x 15.2 x 19.2" | 11.3 x 15.2 x 20.4" | 11.3 x 15.2 x 19.2" | 11.3 x 15.2 x 20.4" |
| Net weight (Veg.Prep.) | 33.5 lb | 28.4 lb | 53 lb | 53 lb | 59 lb | 59 lb |
| Net weight (Cutter) | 31.3 lb | 26.2 lb | 39.7 lb | 41.9 lb | 39.7 lb | 41.9 lb |
