Commercial vacuum packing machine
SE-316
Tabletop model. 665 cf/h. 12.6"
12.6" sealing bar.
665 cf/h Busch vacuum pump.
Vacuum controlled by sensor.
| Pump capacity | 665 cf/h |
| Bar length | 13" |
| Total loading | 0.5 Hp |
| Vacuum pressure (maximum) | 2 mbar |
| Internal dimensions | |
| Width | 13" |
| Depth | 14" |
| Height | 6.1" |
| External dimensions (W x D x H) | |
| Width | 15" |
| Depth | 18.3" |
| Height | 16" |
| Net weight | 93.3 lb |
| Noise level (1m.) | 75 dB(A) |
| Background noise | 32 dB(A) |
- Powered by Busch.
- Vacuum controlled by sensor.
- Vacuum PLUS.
- Digital keyboard.
- Control panel equipped with display indicating the exact vacuum percentage.
- "Pause" button to marinate food.
- Safe liquid packing thanks to sensor control.
- Double seal.
- Cordless sealing bar.
- Bag-sealing programme.
- Pulse-controlled decompression.
- Vac-Norm ready with Automatic decompression.
- Stainless steel body and chamber. Deep-drawn chamber.
- Damped transparent lid.
- Dry-oil programme for drying the pump.
- Working hours counter for oil changes.
- Safety system with protection against vacuum failure.
- NSF-listed model.
Equipment
Included
- Sensor controls.
- Up to 10 seconds of extra vacuum pull.
- Soft air function.
- Dry oil cycle.
- BUSCH pump.
- NSF approved.
- Clear methacrylate lid.
- Filling plate.
Optional
- Vacuum packing bags.
- External vacuum kit for Vac-Norm, containers and accessories.
- Support for liquid packaging.
- Additional filling plates.
Available accessories
Filling plates
Liquid insert plates
For Sammic vacuum packing machines. Ideal accessory to pack liquids in bags.
Vac-norm external vacuum kit
For Sammic vacuum packing machines.
Vac-norm containers
Different sizes vac-norm containers for using as external vacuum packing

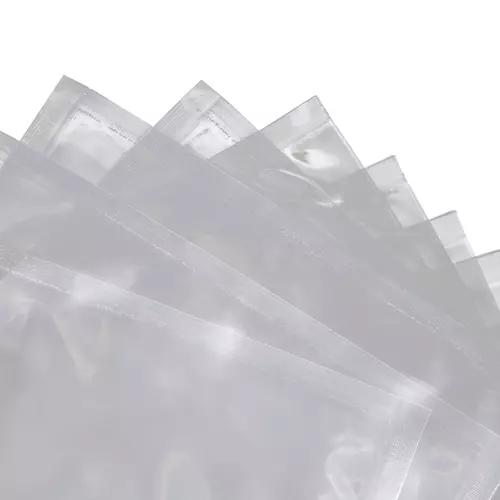

Smooth bags for vacuum packing
Designed for vacuum packing and sous-vide cooking
documents placeholder
Comparison
| SE - Sensor | SU - Sensor Ultra | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |  | |  | |  | |  |  | |  | |  | |  |  |  |  | | |
| SE-208 | SE-310 | SE-316 | SE-416 | SE-420 | SE-520CC | SE-520L | SE-540CC | SU-310 | SU-316 | SU-416 | SU-420 | SU-520CC | SU-520L | SU-540CC | SU-606 | SU-810 | SU-6100 | SU-6160 | |
| 350 cf/h | 420 cf/h | 665 cf/h | 665 cf/h | 840 cf/h | 840 cf/h | 840 cf/h | 1695 cf/h | 424 cf/h | 670 cf/h | 670 cf/h | 848 cf/h | 848 cf/h | 848 cf/h | 1695 cf/h | 2648 cf/h | 4238 cf/h | 4238 cf/h | 6568 cf/h | |
| Double sealing | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes |
| Bar length | 11" | 13" | 13" | 17" | 17" | 17 + 17" | 22" | 16.5 + 16.5" | 12.6" | 12.6" | 16.5" | 16.5" | 16.5 + 16.5" | 22" | 16.5 + 16.5" | 16 + 26" | 21 + 33" | 2 x (26 + 26)" | 2 x (26 + 26)" |
| Total loading | 0.6 Hp | 0.5 Hp | 0.5 Hp | 1 Hp | 1.25 Hp | 1.25 Hp | 1.5 Hp | 0.5 Hp | 0.5 Hp | 0.5 Hp | 1 Hp | 1.25 Hp | 1.25 Hp | 1.5 Hp | 2 Hp | 3 Hp | 3 Hp | 5 Hp | |
| Vacuum pressure (maximum) | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 1 mbar | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 1 mbar | 0.5 mbar | 0.5 mbar | 0.5 mbar | 0.5 mbar |
| Internal dimensions | |||||||||||||||||||
| Width | 11.3" | 13" | 13" | 17" | 17" | 22.3" | 22.3" | 17" | 13" | 13" | 17" | 17" | 22.3" | 22.3" | 17" | 26.4" | 34" | 26" | 26" |
| Depth | 13" | 14" | 14" | 16" | 16" | 16.9" | 16.9" | 16.3" | 14.2" | 14.2" | 16.3" | 16.3" | 16.9" | 16.9" | 16.3" | 19" | 23.7" | 25.8" | 25.8" |
| Height | 4.3" | 6.1" | 6.1" | 7" | 7" | 8.4" | 8.4" | 7" | 6.1" | 6.1" | 7" | 7" | 8.4" | 8.4" | 7" | 7.8" | 8.4" | 8" | 8" |
| External dimensions (W x D x H) | |||||||||||||||||||
| Width | 13.2" | 15" | 15" | 19" | 19" | 24.9" | 24.9" | 25.6" | 15" | 15" | 19" | 19" | 24.9" | 24.9" | 25.6" | 29" | 37.7" | 65" | 65" |
| Depth | 16.9" | 18.3" | 18.3" | 20.8" | 20.8" | 21.7" | 21.7" | 23" | 18.3" | 18.3" | 20.8" | 20.8" | 21.7" | 21.7" | 23" | 22.2" | 29.8" | 35" | 35" |
| Height | 13" | 16" | 16" | 17.6" | 17.6" | 20.1" | 20.1" | 38" | 16" | 16" | 17.6" | 17.6" | 20.1" | 20.1" | 38" | 39.2" | 39.2" | 54" | 54" |
| Net weight | 71 lb | 87.7 lb | 93.3 lb | 112.8 lb | 126 lb | 167.55 lb | 155.21 lb | 208 lb | 87.7 lb | 93.3 lb | 112.8 lb | 126 lb | 167.55 lb | 155.21 lb | 208 lb | 353 lb | 551 lb | 800 lb | 888.8 lb |
