Commercial vacuum packing machine: Vacuum sealer SU-540CC
Commercial vacuum packing machine: Vacuum sealer SU-540CC
Commercial vacuum packing machine: Vacuum sealer SU-540CC

Commercial vacuum packing machine

SU-540CC

Floorstanding unit. 40 m³/h. 420 + 420 mm.

Two sealing bars (420 + 420 mm).
40 m³/h Becker vacuum pump.
Vacuum controlled by sensor.

Pump capacity40 m³/h
Pump capacity (60 Hz)48 m³/h
Bar length420 mm
Total loading1100 W
Vacuum pressure (maximum)1 mbar
Internal dimensions
Width430 mm
Depth415 mm
Height180 mm
External dimensions (W x D x H)
Width650 mm
Depth589 mm
Height968 mm (230V) / (120V)
Net weight94.5 kg
Noise level (1m.)75 dB(A)
Background noise32 dB(A)
Crated dimensions
30.3 x 25.6 x 43.9 "
Gross weight241.4 lbs.
  • Vacuum controlled by sensor.
  • Vacuum PLUS.
  • LCD colour screen: all information at a glance.
  • Backlit touch keyboard.
  • Programmable: 99-programme memory. Blocking option.
  • "Pause" button to marinate food.
  • Phased vacuum programme.
  • Detection of the evaporation of liquids.
  • Double seal.
  • Cordless sealing bar.
  • Bag sealing program.
  • Progressive decompression.
  • Vac-Norm ready with automatic decompression.

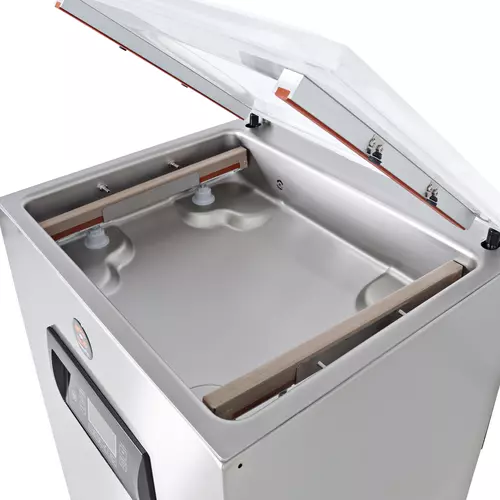

  • Stainless steel body and chamber. Deep-drawn chamber.
  • Damped transparent lid.
  • Dry-oil programme for drying the pump.
  • Working hours counter for oil changes.
  • Safety system with protection against vacuum failure.

Equipment

Included with the machine

  • Sensor controls.
  • Programmable.
  • Bluetooth connectivity.
  • Vacuum plus: up to 10 seconds of extra vacuum pull.
  • Soft air function.
  • Clear methacrylate lid.
  • Pause function.
  • Liquid detection system.
  • Dry oil cycle.
  • NSF approved.
  • Filling plate.

Optional

  • Inert gas.
  • Sealing plus.
  • Printer.
  • Vacuum packing bags.
  • External vacuum kit for Vac-Norm, containers and accessories.
  • Bag cutting kit.
  • Support for liquid packaging.
  • Additional filling plates.

Documents

Spec sheet

download

Brochure

Vacuum packing basics - English (pdf)

download

Instructions

Vacuum Packing Machines SE (pdf)

download

Instructions

Vacuum packing machines SU (pdf)

download

Instructions

Packaging machine maintenance (pdf)

download

Declaration of conformity

Vacuum Sealer SE/SU-2XX/3XX/4XX/5XX/6XX/8XX (pdf)

download

Comparison

SE - SensorSU - Sensor Ultra
SE-208SE-310SE-316SE-416SE-420SE-520CCSE-520LSU-310SU-316SU-416SU-420SU-520CCSU-520LSU-540CCSU-606SU-810SU-6100SU-6160
SE-208SE-310SE-316SE-416SE-420SE-520CCSE-520LSU-310SU-316SU-416SU-420SU-520CCSU-520LSU-540CCSU-606SU-810SU-6100SU-6160
350 cf/h420 cf/h665 cf/h665 cf/h840 cf/h840 cf/h840 cf/h424 cf/h670 cf/h670 cf/h848 cf/h848 cf/h848 cf/h1695 cf/h2648 cf/h4238 cf/h4238 cf/h6568 cf/h
Double sealingyesyesyesyesyesyesyesyesyesyesyesyesyesyesyesyesyesyes
11"13"13"17"17"17 + 17"22"12.6"12.6"16.5"16.5"16.5 + 16.5"22"16.5 + 16.5"16 + 26"21 + 33"2 x (26 + 26)"2 x (26 + 26)"
Total loading0.6 Hp0.5 Hp0.5 Hp1 Hp1.25 Hp1.25 Hp0.5 Hp1 Hp1.25 Hp1.25 Hp1.5 Hp2 Hp3 Hp3 Hp5 Hp
Vacuum pressure (maximum)2 mbar2 mbar2 mbar2 mbar2 mbar2 mbar2 mbar2 mbar2 mbar2 mbar2 mbar2 mbar2 mbar1 mbar0.5 mbar0.5 mbar0.5 mbar0.5 mbar
Internal dimensions
11.3"13"13"17"17"22.3"22.3"13"13"17"17"22.3"22.3"17"26.4"34"26"26"
13"14"14"16"16"16.9"16.9"14.2"14.2"16.3"16.3"16.9"16.9"16.3"19"23.7"25.8"25.8"
4.3"6.1"6.1"7"7"8.4"8.4"6.1"6.1"7"7"8.4"8.4"7"7.8"8.4"8"8"
External dimensions (W x D x H)
Width13.2"15"15"19"19"24.9"24.9"15"15"19"19"24.9"24.9"25.6"29"37.7"65"65"
Depth16.9"18.3"18.3"20.8"20.8"21.7"21.7"18.3"18.3"20.8"20.8"21.7"21.7"23"22.2"29.8"35"35"
Height13"16"16"17.6"17.6"20.1"20.1"16"16"17.6"17.6"20.1"20.1"38"39.2"39.2"54"54"
Net weight71 lb87.7 lb93.3 lb112.8 lb126 lb167.55 lb155.21 lb87.7 lb93.3 lb112.8 lb126 lb167.55 lb155.21 lb208 lb353 lb551 lb
