Commercial vacuum packing machines
SU - Sensor Ultra
SU range.
SU-310
Tabletop model. 424 cf/h. 12.6".
SU-316
Tabletop model. 670 cf/h. 12.6".
SU-416
Tabletop model. 670 cf/h. 16.5".
SU-420
Tabletop model. 848 cf/h. 16.5".
SU-520CC
Tabletop model. 848 cf/h. 16.5"
SU-520L
Tabletop model. 848 cf/h.
SU-540CC
Floorstanding unit. 40 m³/h. 420 + 420 mm.
SU-606
Floorstanding unit. 2648 cf/h. 16.3".
SU-810
Floorstanding unit. 4238 cf/h. 20.9".
SU-6100
Double chamber vacuum packing machine. 4238 cf/h.
SU-6160
Double chamber vacuum packing machine. 6568 cf/h.
Vacuum controlled by sensor.
Wide range of options, and 3.9" color LCD screen.
Looking for the latest for your vacuum sealer?
SU is the range you need.
-

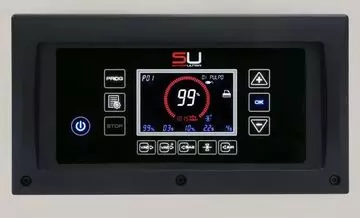

Advanced control panel
Digital panel with 3.9" color LCD screen: all the information at a glance.
-
Touch keypad
Backlit touch keypad protected against liquid splashes.
-
Program memory
Ability to memorize 99 different programs with lock option.
-
Vacuum by stages
Special program for soft, porous-type products.
-
Pack your liquids safely
Liquid evaporation point detection system, ensuring the maximum possible vacuum in each cycle.
-
Progressive decompression
Prevents bag puncture with sharp-edged products.
-

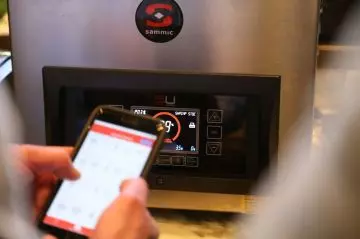

Bluetooth connectivity
Program and control your vacuum sealer from the SammicVac app.
-
Print your labels
Connection to a printer as standard: print your labels without the need for a PC or other device. The printer is optional.
Advanced features and options
Maximum control and consistent results at all times.
Bluetooth connectivity
Easy programming and direct label printing (the printer is optional).
Program memory
Create and name your programs from the app.
Extra options
Wide catalog of extra options: enhanced sealing, printer, inert gas.
Pack your liquids safely
Liquid evaporation point detection system.
Comparison SU - Sensor Ultra
| SU - Sensor Ultra | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | |  | |  | |  |  |  |  | | |
| SU-310 | SU-316 | SU-416 | SU-420 | SU-520CC | SU-520L | SU-540CC | SU-606 | SU-810 | SU-6100 | SU-6160 | |
| 424 cf/h | 670 cf/h | 670 cf/h | 848 cf/h | 848 cf/h | 848 cf/h | 1695 cf/h | 2648 cf/h | 4238 cf/h | 4238 cf/h | 6568 cf/h | |
| Double sealing | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes |
| Bar length | 12.6" | 12.6" | 16.5" | 16.5" | 16.5 + 16.5" | 22" | 16.5 + 16.5" | 16 + 26" | 21 + 33" | 2 x (26 + 26)" | 2 x (26 + 26)" |
| Total loading | 0.5 Hp | 0.5 Hp | 0.5 Hp | 1 Hp | 1.25 Hp | 1.25 Hp | 1.5 Hp | 2 Hp | 3 Hp | 3 Hp | 5 Hp |
| Vacuum pressure (maximum) | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 1 mbar | 0.5 mbar | 0.5 mbar | 0.5 mbar | 0.5 mbar |
| Internal dimensions | |||||||||||
| Width | 13" | 13" | 17" | 17" | 22.3" | 22.3" | 17" | 26.4" | 34" | 26" | 26" |
| Depth | 14.2" | 14.2" | 16.3" | 16.3" | 16.9" | 16.9" | 16.3" | 19" | 23.7" | 25.8" | 25.8" |
| Height | 6.1" | 6.1" | 7" | 7" | 8.4" | 8.4" | 7" | 7.8" | 8.4" | 8" | 8" |
| External dimensions (W x D x H) | |||||||||||
| Width | 15" | 15" | 19" | 19" | 24.9" | 24.9" | 25.6" | 29" | 37.7" | 65" | 65" |
| Depth | 18.3" | 18.3" | 20.8" | 20.8" | 21.7" | 21.7" | 23" | 22.2" | 29.8" | 35" | 35" |
| Height | 16" | 16" | 17.6" | 17.6" | 20.1" | 20.1" | 38" | 39.2" | 39.2" | 54" | 54" |
| Net weight | 87.7 lb | 93.3 lb | 112.8 lb | 126 lb | 167.55 lb | 155.21 lb | 208 lb | 353 lb | 551 lb | 800 lb | 888.8 lb |
Commercial vacuum packing machines
Highly precise commercial vacuum sealers for foodservice, institutional kitchens and food retail
Maximum quality construction
- Equipped with Busch pumps.
- Vacuum controlled by an extremely accurate sensor.
- Double seal system to ensure the durability of the packing.
- Cordless sealing bar.
- Both the chamber and the body are made of stainless steel.
- Recessed chambers in the 200, 300, 400 and 500 series.
- Damped transparent lid.
- Digital control panel.
Advanced performance in all models
- Safe liquid packing.
- Vac-Norm (external vacuum kit) ready with Automatic decompression.
- Bag-sealing programme.
- “Pause” button to marinate food.
- Controlled decompression.
- Vacuum plus, option to program up to 10 seconds of additional vacuum.
Hygiene and durability guarantee
- Cordless sealing bar for simple and easy cleaning of the chamber.
- Vacuum chambers free of sharp edges and with rounded contours to facilitate cleaning.
- Safety system with protection against vacuum failure.
- Dry-oil programme for drying the pump.
- Working hours counter for oil changes.
- NSF listed.
The Smart Vacuum Xperience
-
Equipped with Busch vacuum pumps
Sturdy and reliable. Guaranteed quality.
-
Deep-drawn chambers
Stainless steel body and chamber.
-
-
-
-
-
Double seal system
Ensured surability of the packing.
-
Powered by Busch
Guaranteed quality.
More pictures
Do you want to see more photos?
Comparison
| SE - Sensor | SU - Sensor Ultra | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |  | |  | |  | |  | | | | | | | | | | | | |
| SE-208 | SE-310 | SE-316 | SE-416 | SE-420 | SE-520CC | SE-520L | SE-540CC | SU-310 | SU-316 | SU-416 | SU-420 | SU-520CC | SU-520L | SU-540CC | SU-606 | SU-810 | SU-6100 | SU-6160 | |
| 350 cf/h | 420 cf/h | 665 cf/h | 665 cf/h | 840 cf/h | 840 cf/h | 840 cf/h | 1695 cf/h | 424 cf/h | 670 cf/h | 670 cf/h | 848 cf/h | 848 cf/h | 848 cf/h | 1695 cf/h | 2648 cf/h | 4238 cf/h | 4238 cf/h | 6568 cf/h | |
| Double sealing | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes | yes |
| Bar length | 11" | 13" | 13" | 17" | 17" | 17 + 17" | 22" | 16.5 + 16.5" | 12.6" | 12.6" | 16.5" | 16.5" | 16.5 + 16.5" | 22" | 16.5 + 16.5" | 16 + 26" | 21 + 33" | 2 x (26 + 26)" | 2 x (26 + 26)" |
| Total loading | 0.6 Hp | 0.5 Hp | 0.5 Hp | 1 Hp | 1.25 Hp | 1.25 Hp | 1.5 Hp | 0.5 Hp | 0.5 Hp | 0.5 Hp | 1 Hp | 1.25 Hp | 1.25 Hp | 1.5 Hp | 2 Hp | 3 Hp | 3 Hp | 5 Hp | |
| Vacuum pressure (maximum) | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 1 mbar | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 2 mbar | 1 mbar | 0.5 mbar | 0.5 mbar | 0.5 mbar | 0.5 mbar |
| Internal dimensions | |||||||||||||||||||
| Width | 11.3" | 13" | 13" | 17" | 17" | 22.3" | 22.3" | 17" | 13" | 13" | 17" | 17" | 22.3" | 22.3" | 17" | 26.4" | 34" | 26" | 26" |
| Depth | 13" | 14" | 14" | 16" | 16" | 16.9" | 16.9" | 16.3" | 14.2" | 14.2" | 16.3" | 16.3" | 16.9" | 16.9" | 16.3" | 19" | 23.7" | 25.8" | 25.8" |
| Height | 4.3" | 6.1" | 6.1" | 7" | 7" | 8.4" | 8.4" | 7" | 6.1" | 6.1" | 7" | 7" | 8.4" | 8.4" | 7" | 7.8" | 8.4" | 8" | 8" |
| External dimensions (W x D x H) | |||||||||||||||||||
| Width | 13.2" | 15" | 15" | 19" | 19" | 24.9" | 24.9" | 25.6" | 15" | 15" | 19" | 19" | 24.9" | 24.9" | 25.6" | 29" | 37.7" | 65" | 65" |
| Depth | 16.9" | 18.3" | 18.3" | 20.8" | 20.8" | 21.7" | 21.7" | 23" | 18.3" | 18.3" | 20.8" | 20.8" | 21.7" | 21.7" | 23" | 22.2" | 29.8" | 35" | 35" |
| Height | 13" | 16" | 16" | 17.6" | 17.6" | 20.1" | 20.1" | 38" | 16" | 16" | 17.6" | 17.6" | 20.1" | 20.1" | 38" | 39.2" | 39.2" | 54" | 54" |
| Net weight | 71 lb | 87.7 lb | 93.3 lb | 112.8 lb | 126 lb | 167.55 lb | 155.21 lb | 208 lb | 87.7 lb | 93.3 lb | 112.8 lb | 126 lb | 167.55 lb | 155.21 lb | 208 lb | 353 lb | 551 lb | 800 lb | 888.8 lb |
